Mercedes D.IIIa Flugmotor

Written By Bo Monroe
WIP of the upper half of the Mercedes engine, with valve train and internal reciprocating parts.

Upper half of the 1/32 Mercedes engine, with valve train and internal reciprocating parts. WIP.

I'm currently revisiting the Mercedes D.III & D.IIIa flugmotors that powered so many German aircraft in the first world war. The plan is to produce complete kits -- not just a handful of dress-up parts -- in a range of scales from 1/48 to 1/16 — and maybe even larger. The 1/32 scale version is currently well along, with the crankshaft, connecting rods and pistons as well as cylinders and valve train all having been designed and test assembled. Watch this space as this project progresses.

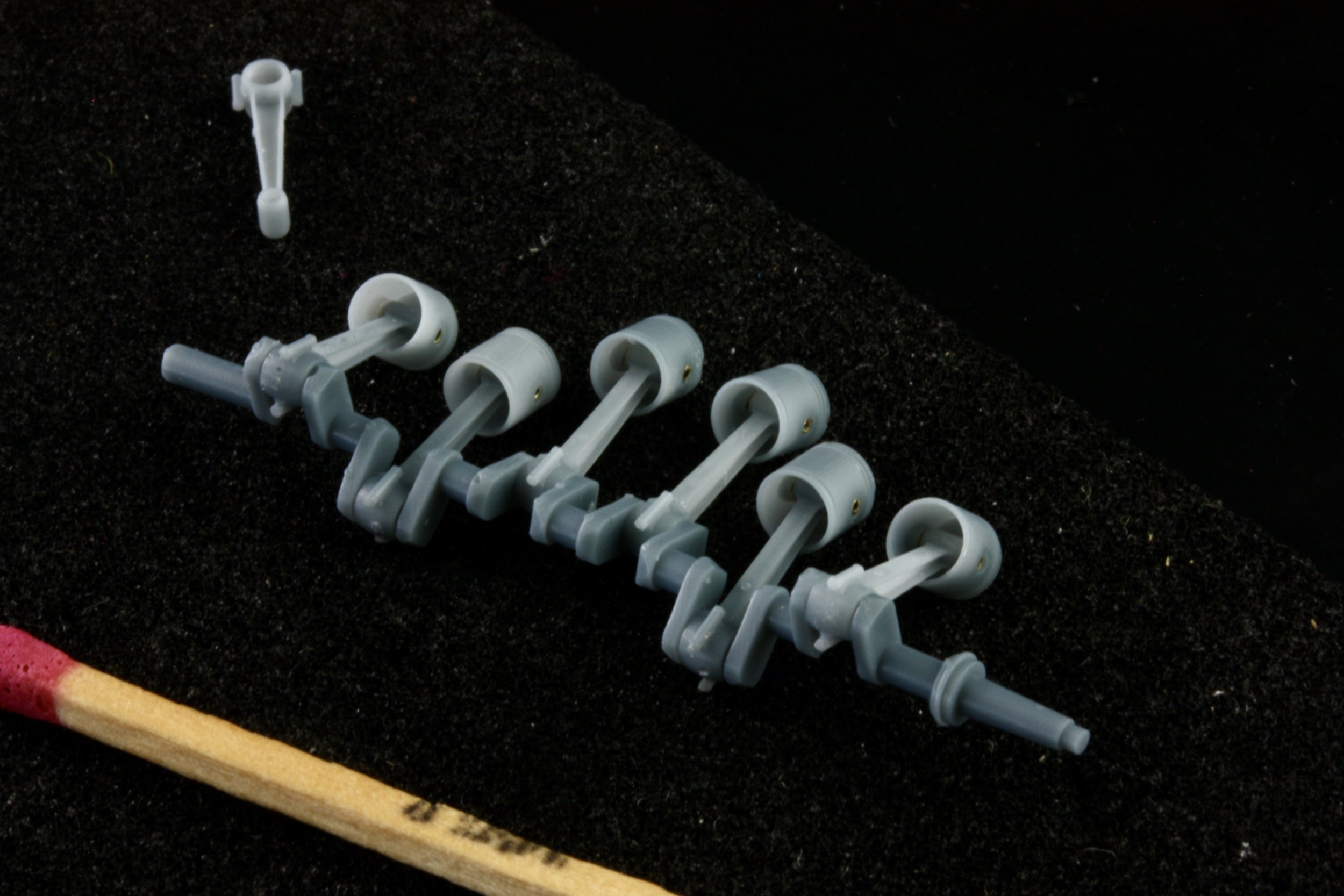

1/32 reciprocating parts assembly

1/32 Cylinders feature working valve springs.

Cam, Rocker Boxes, Individual Rockers

The crankcase is completely redesigned.



Bo Monroe
